سانورتر گوگرین 12kw مدل GGIV 1p_ 12kw GO GREEN

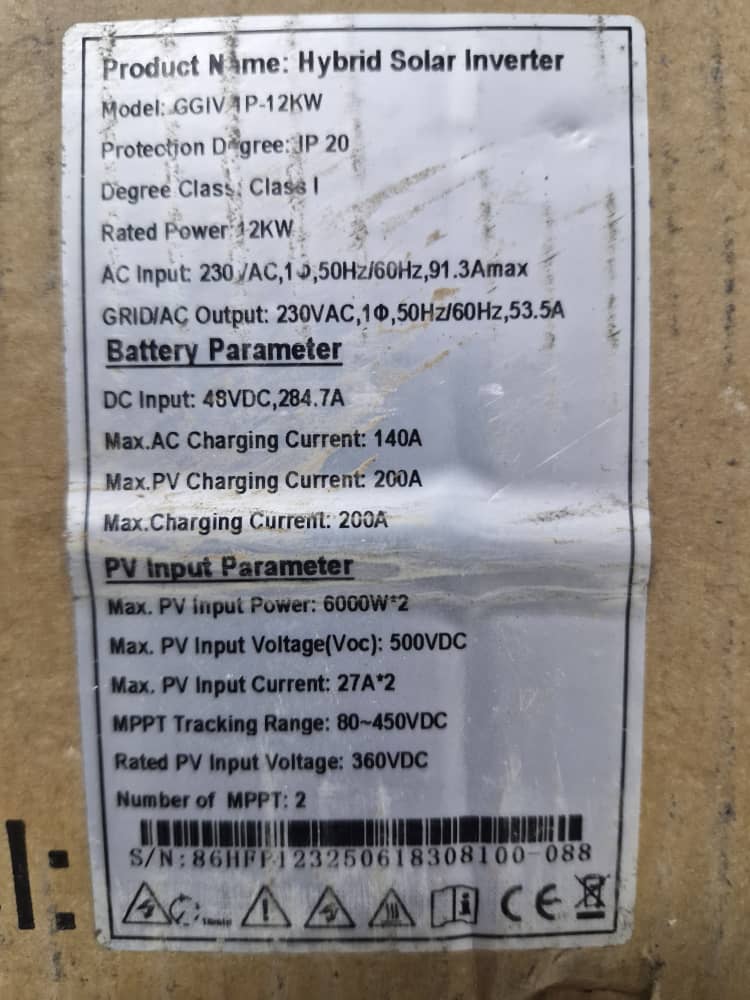

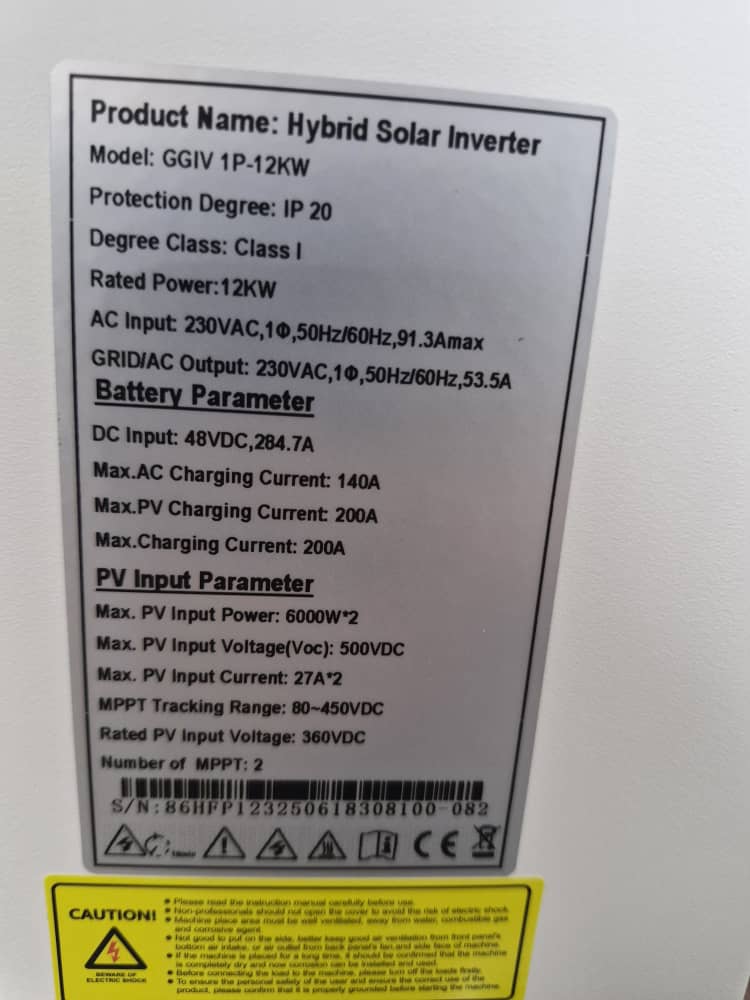

Model GGIV 1P-12KW PV (DC Input) Recommended Max. PV Input Power 12000W Max. Input Voltage (Voc) 500V MPPT Operating Voltage Range 85V-450V (@75V Start Up) Number of MPPT 2 Max. Number of Input Strings per MPPT 1 Max. Input Current per MPPT 27/27A Max. Short-circuit current per MPPT 35/35A Grid (AC Input) Max. Input Power 16000W Max. Input Current 90A Rated Grid Voltage 220/230/240Vac Rated Grid Frequency 50/60Hz Acceptable range 170-280Vac (For UPS); 90-280Vac (For Home Appliances) Battery Parameters (Bidirection) Battery Type LiFePO4 / Lead Acid Battery Voltage Range 40~60Vdc Rate Battery Voltage 48Vdc Max. Charge/Discharge Current 210A/230A BMS Communication Mode RS485 Back-up Output (AC Output) Rated Output Power 12000W/12000VA (Twin Output) Rate Output Current 54.5A Rated Output Voltage/Frequency 220/230/240Vac 50/60Hz Parallel Capacity Max. 12 Units Surge Power 24000VA 5s THDv\ (@ linear load) < 3 % Switching Time 10ms Typical (For UPS); 20ms (For Home Appliances) Efficiency Peak Efficiency 98.00% Max. MPPT Efficiency 99.90% Protection Inner Protection ✓Output Short-Circuit Protection ✓Output Over-Voltage Protection Surge Protection PV: Type III, AC: Type III IP Rating IP54 General Parameters Operating Temperature Range-100C~550C Relative Humidity Range 5%~950C Max. Operating Altitude > 2000m Derating Standby Self-Consumption < 20W Installation Type Wall Mounted Cooling Mode Fan Cooling Communication RS232 / RS485 / Dry Contact / WI-FI Display LCD Mechanical Specifications Inverter Dimensions (L*W*H) (mm) 630*535*125 Net Weight (kg) 27 Shipping Dimensions (L*W*H) (mm) 745*650*240 Gross Weight (kg) 30
